$2,043.00 USD

Especially designed to permit lowest possible height of monorail at truck unloading ramp.

Corrosion resistant finish. Bars and hooks hot dip galvanized. Bolts and nuts zinc plated.

Rugged design provides generous safety factors. Bar has a section modulus of 7.0 in.3, which permits 100 percent impact loading. Hooks are cut from 1" wrought steel plate.

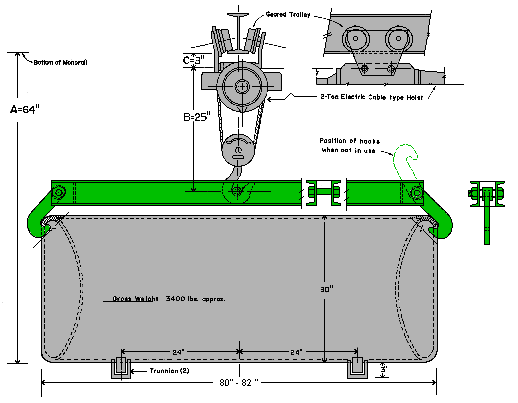

NOTE: To determine monorail height above grade, add truck bed height to distance "A" as illustrated. Check dimensions "B" and "C" with hoist manufacturer.

C-262 LIFTING BAR
120 lbs. each



C-262M for metric cylinders & C-262FL for use with forklift available - please call for details
